| モデル: | WNK3000 | タイプ: | 流れセンサー |
|---|---|---|---|
| 流れの範囲: | 0-200slm | 出力: | I2C |
| 電源: | 5VDC | 正確さ: | 1.5%典型的な価値 |
| 材料: | PPE+PS | テスト メディア: | 空気、N2。02の非腐食性のガス |
| 温度修正: | はい | MOQ: | 1PC |
| ハイライト: | 200SLM医学の気流センサー,I2Cの医学の気流センサー,200slm医学の気流のメートル |
||
Product description
WNK3000 is specially designed for ventilator applications. It measures the flow of air, oxygen and other non-aggressive gases with superb accuracy. The special design in the air duct makes the pressure loss of the flow body passing through the sensor very low, making its performance suitable for various demanding application scenarios, such as medical ventilation and respiratory applications.
WNK3000 works with 5V power supply voltage and has
a digital I2C interface. The output value is internally
calibrated and temperature compensated.
It is connected by a thermal sensor chip and a
high-performance integrated 24-bit AD acquisition
CMOSCMOS microprocessor connection manager.
Application range
Medical, process automation, burner control, fuel cell control, spectroscopy, environmental
monitoring, laboratory.
OEM industry customization and solutions
According to the application site and customer needs, the flow range can be customized and the
independent air duct structure can be designed to provide customers with a complete set of
application solutions.
Spec
| Type | Flow sensor |
| Flow range | 0-200slm |
| Output | I2C |
| Power supply | 5VDC |
| Accuracy | 1.5% typical value |
| Material | PPE+PS |
| Test media | Air, N2. 02, non-corrosive gas |
| Temperature Compensation | Yes |
| Weight | 25g |
| Working temperature | 0-50C |

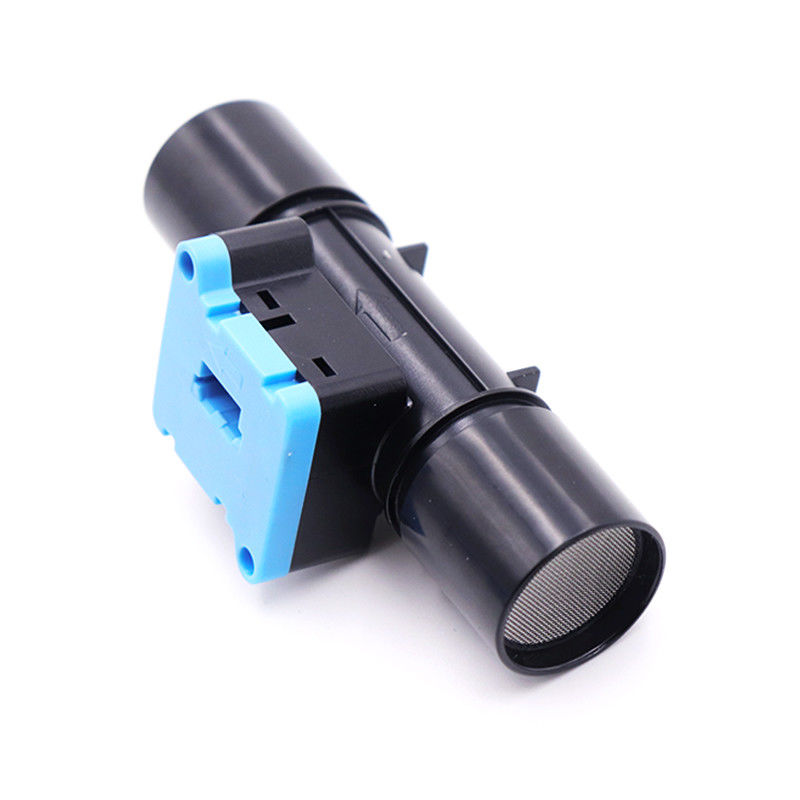

Product show
Q: Are you manufacturer or trading company?
A: We are professional pressure/level/temperature measurement manufacturer with more than 13 years of experience. Our factory address is: 4/F,Bldg #6, No.168, Xiangzhang Road, High-tech District, 230088, Hefei, Anhui province, China.
Q: What’s your quality control system?
A: We are an ISO 9001-2015 certified manufacturer, we have strict quality control system. Besides clibartiaon, each set product we also do temperature compensation and aging test before shipment, so the quality is guaranteed.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Can we use our logo on the products? Do you provide customized products?
Yes.we can use your logo, we can provide customized products per requirement. OEM/ODM is welcome
Q: What is yor MOQ?
A: We have no MOQ limits, small quantity order is acceptable.
Q: What's the transport?
A: Express such as DHL, Fedex, TNT, UPS for freight prepaid, also can use your own couier account to do the freight collect. For more goods we can arrange by air or by Sea.
